PCB and PCBA are two common terms in electronic products, with clear differences between them. This article will introduce the meanings, differences, and applications of PCB and PCBA to help readers better understand these two concepts.

The meaning of PCB is short for Printed Circuit Board, which is a type of board shaped material used to support and connect electronic components. PCB boards are usually composed of one or more layers of copper foil and a substrate, with circuit patterns on the copper foil used to support the soldering and connection of electronic components.

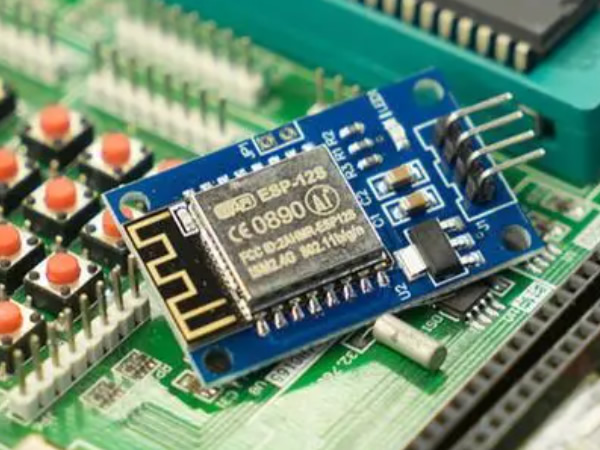

The meaning of PCBA is short for Printed Circuit Board Assembly, which refers to soldering electronic components onto a PCB board to form a complete circuit system. PCBA typically includes processes such as component assembly, welding, and testing, and is a very important part of electronic products.

Difference

(1) Different meanings: PCB is mainly used to support and connect electronic components in the form of a board, while PCBA solders electronic components onto the PCB board to form a complete circuit system.

Different processes: The production of PCB mainly includes circuit design, PCB board diagram design, PCB template production, corrosion of copper foil, drilling, tin spraying, and board making processes. The production of PCBA requires processes such as component assembly, welding, and testing.

Application difference: PCB is mainly used to support and connect electronic components, while PCBA integrates electronic components into a complete circuit system and can be used for the manufacturing of various electronic products, such as mobile phones, computers, tablets, etc.

Both PCB and PCBA have extensive applications in electronic products. PCB is mainly used in the manufacturing of various electronic products, such as televisions, digital cameras, electronic toys, etc. And PCBA is an indispensable part of electronic products, which can be used in the manufacturing of various electronic products such as mobile phones, computers, tablets, etc.

PCB and PCBA are two common terms in electronic products, with clear differences between them. PCB is mainly used to support and connect electronic components, while PCBA solders electronic components onto the PCB board to form a complete circuit system. PCB and PCBA have extensive applications in electronic products and are an indispensable part of electronic products.
