Items
|
|
Normal capability
|
Advance capability
|
Inner core thickness
|
Min
|
0.1mm
|
0.1mm
|
Max
|
2.0mm
|
3.0mm
|

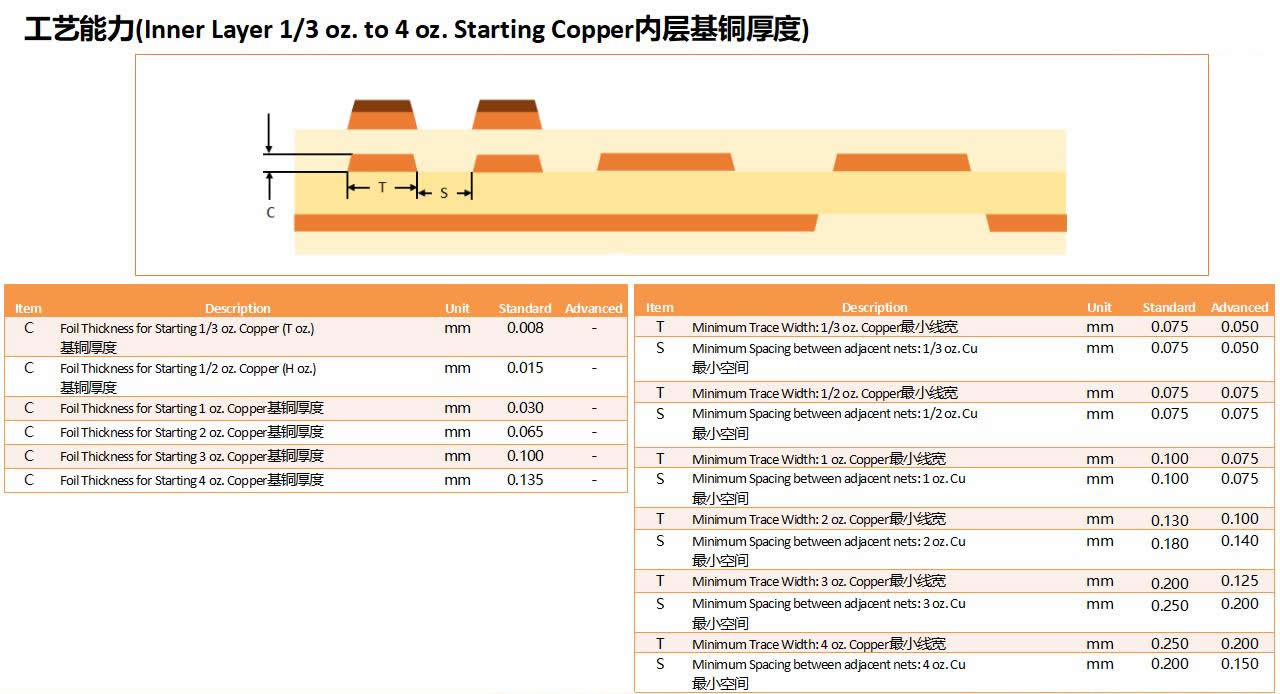

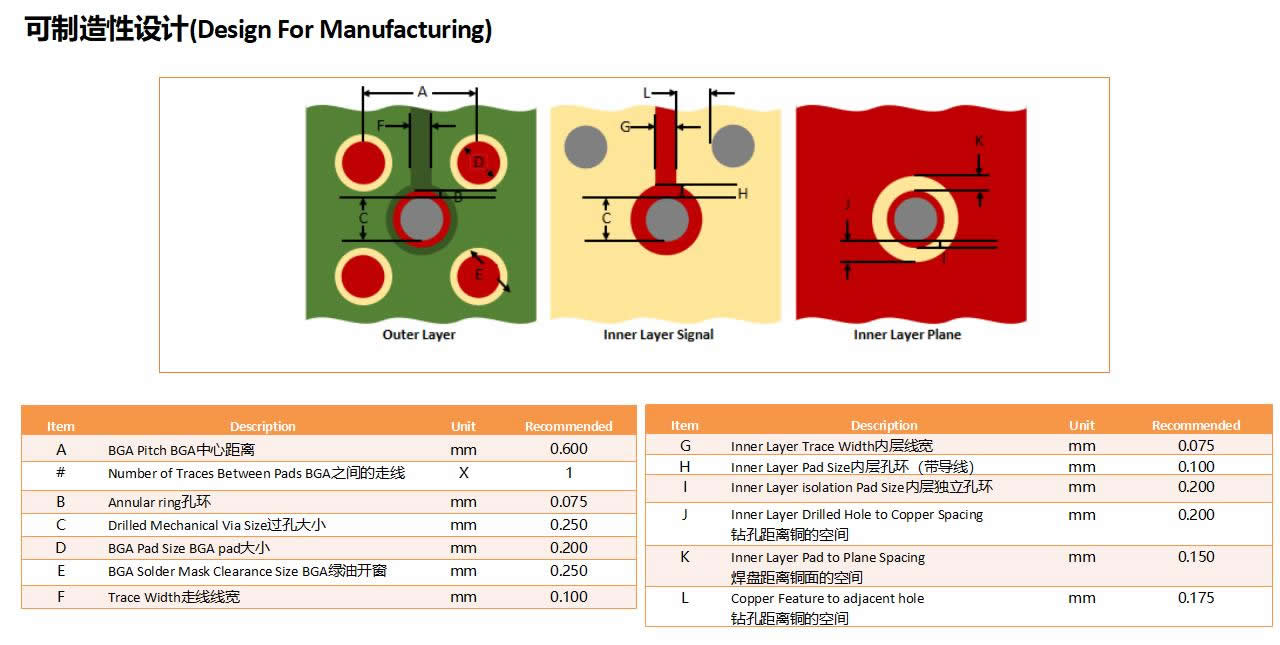

Conductor width and spacing
|
Inner(1/3 or HOZ)
|
4/3 mil +/- 20%
|
2/2 mil +/- 10%
|
Outer(1/3 or HOZ)
|
4/4 mil +/- 20%
|
2/2 mil +/- 10%
|
Impedance control
|
---
|
+/- 10%
|
+/- 5%
|

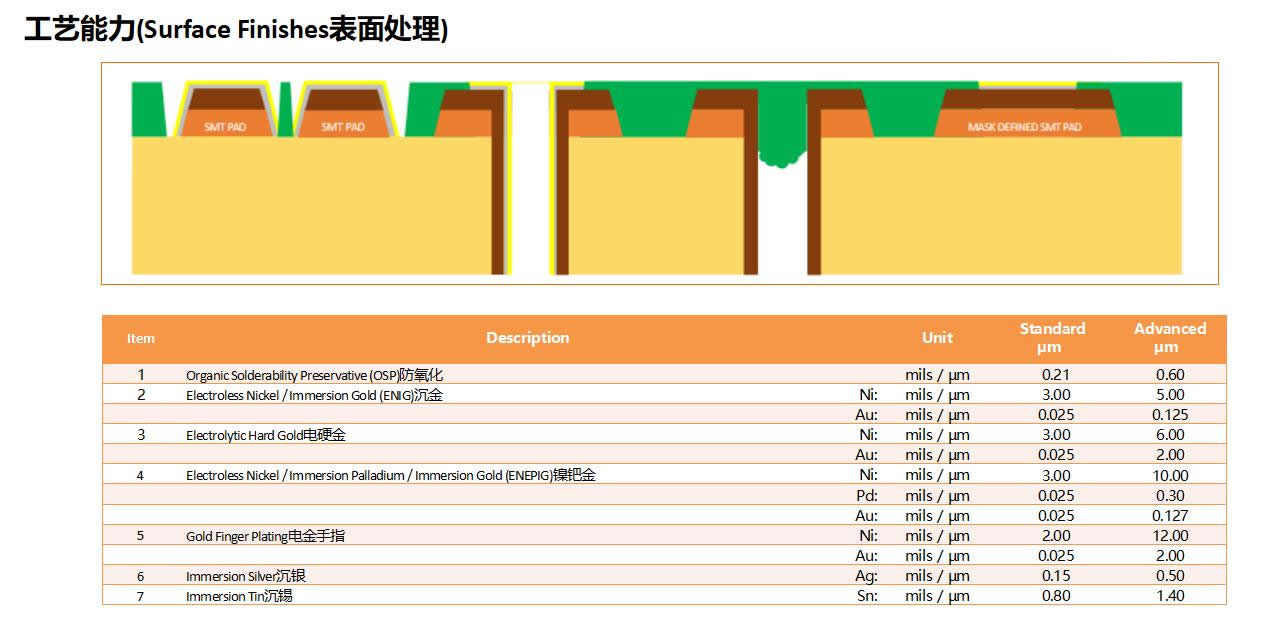

Copper thickness
|
Max
|
3/3 Oz
|
4/4 Oz
|
Board thickness
|
Max
|
3.2mm
|
3.5mm
|
Board thickness tolerance
|
>2.0mm and <3.0mm
|
+/- 0.18mm
|
+/- 8%
|
>1.0mm and <=2.0mm
|
+/- 0.13mm
|
+/- 8%
|
<=1.0mm
|
+/- 0.10mm
|
+/- 0.05mm
|
Layer count
|
Max
|
8 layers
|
14 layers
|
Hole to copper spacing
|
4 layers
|
7 mil
|
6 mil
|
6 layers
|
8 mil
|
6.5 mil
|
8 layers
|
8 mil
|
7 mil
|

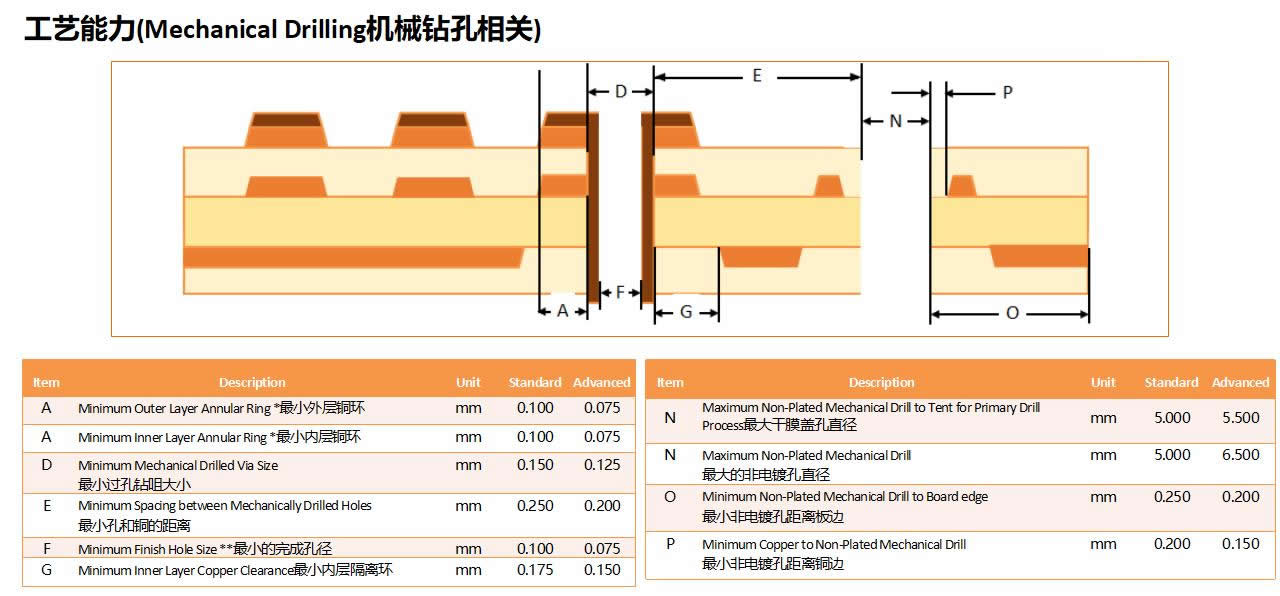

Finished Hole size
|
Min drill bit
|
6 mil
|
4 mil
|
Aspect ratio
|
Max
|
8:1
|
10:1
|
Legend mark width
|
---
|
5 mil
|
4 mil
|

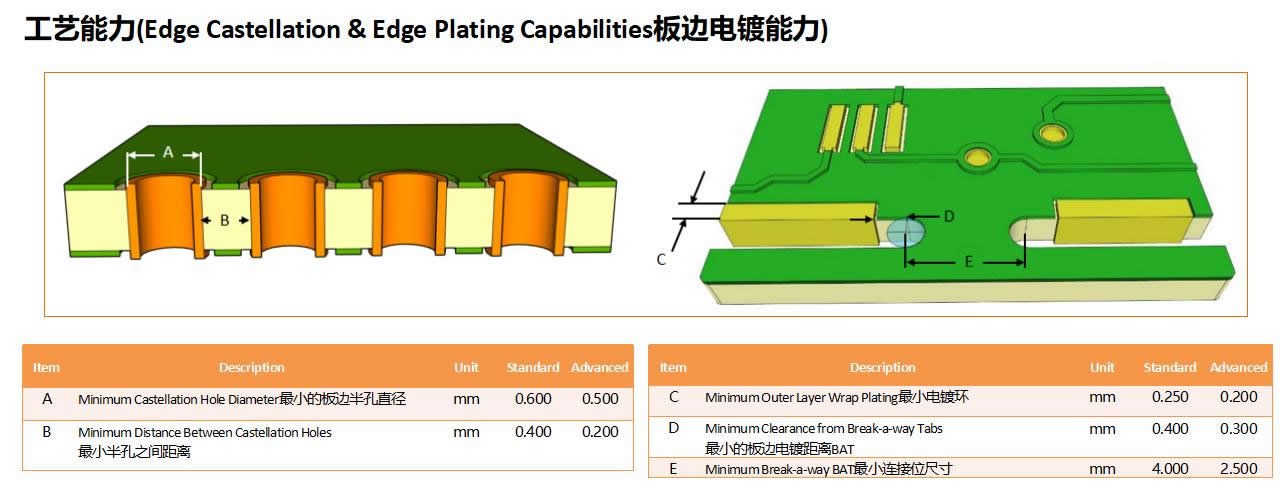

V-cut remain thickness
|
---
|
+/- 6 mil
|
+/- 4 mil
|

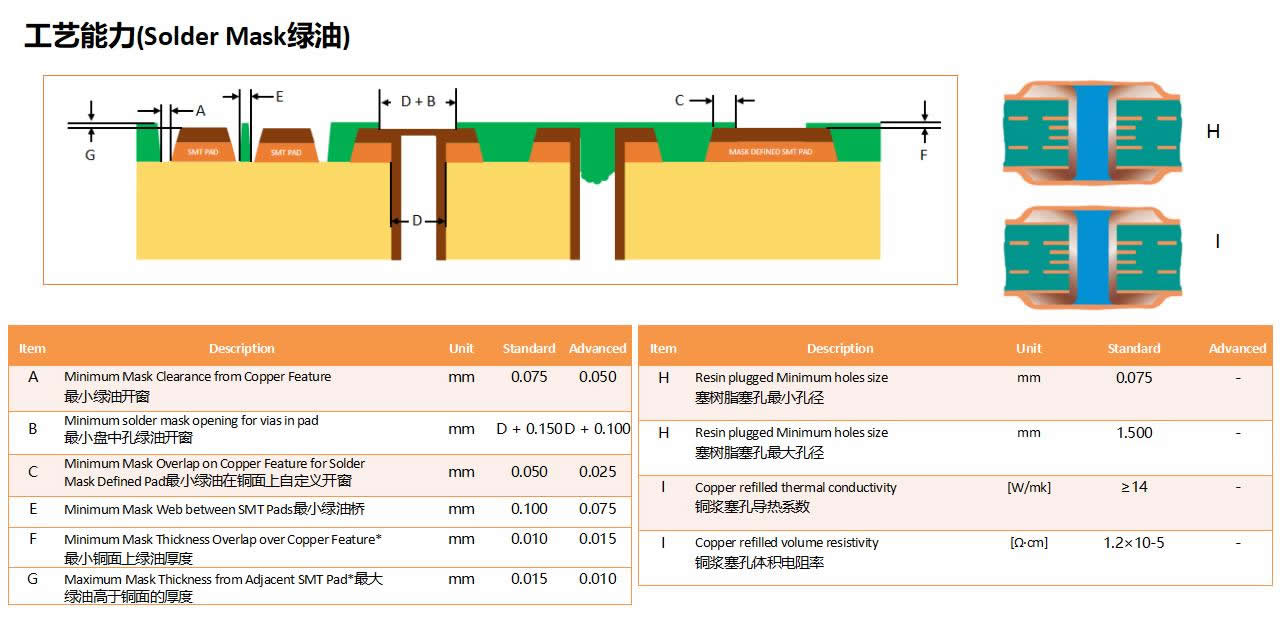

Solder mask
|
Line to pad
|
3 mil
|
2 mil
|
Solder bridge
|
4 mil
|
3 mil
|
Solder bridge(black ink)
|
5 mil
|
4 mil
|
Registration
|
2.5 mil
|
1.5 mil
|
Insertion hole
|
Size
|
+/- 3 mil
|
+/- 2 mil
|
Press fit hole
|
Size
|
+/- 2 mil
|
+/- 2 mil
|
Hole Positional tolerance
|
Positional
|
+/- 3 mil
|
+/- 2 mil
|
NPTH hole
|
Size
|
+/- 2 mil
|
+2/-0 or +0/-2 mil
|

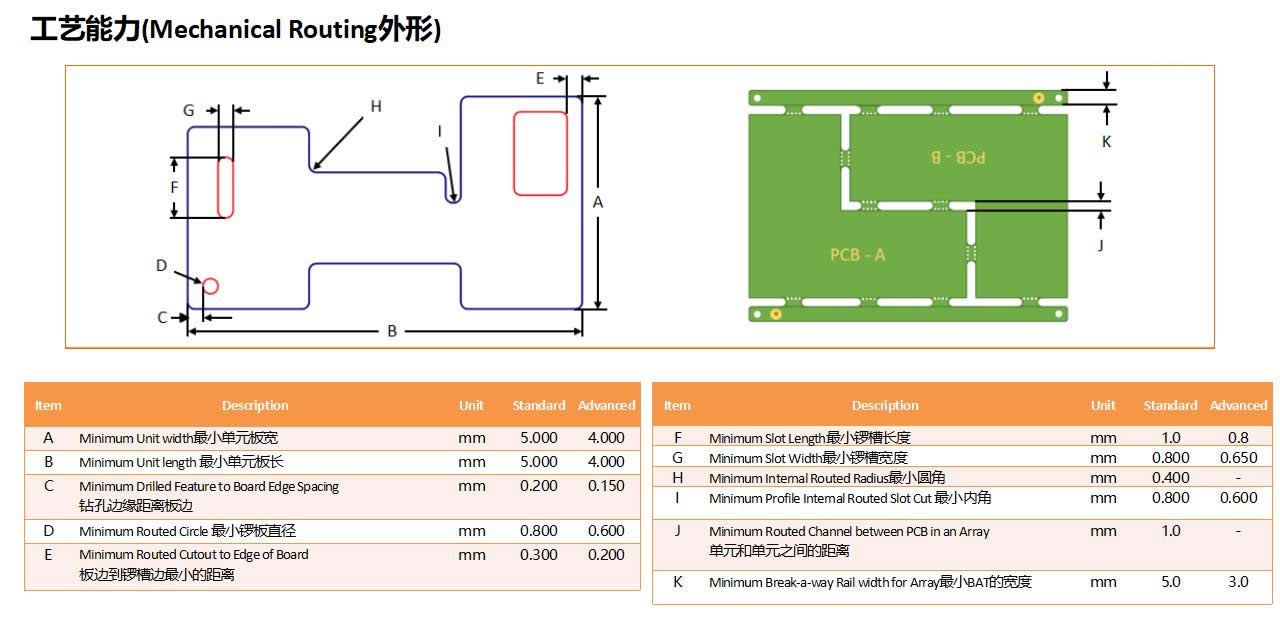

Profiling tolerance
|
---
|
+/- 5 mil
|
+/- 4 mil
|

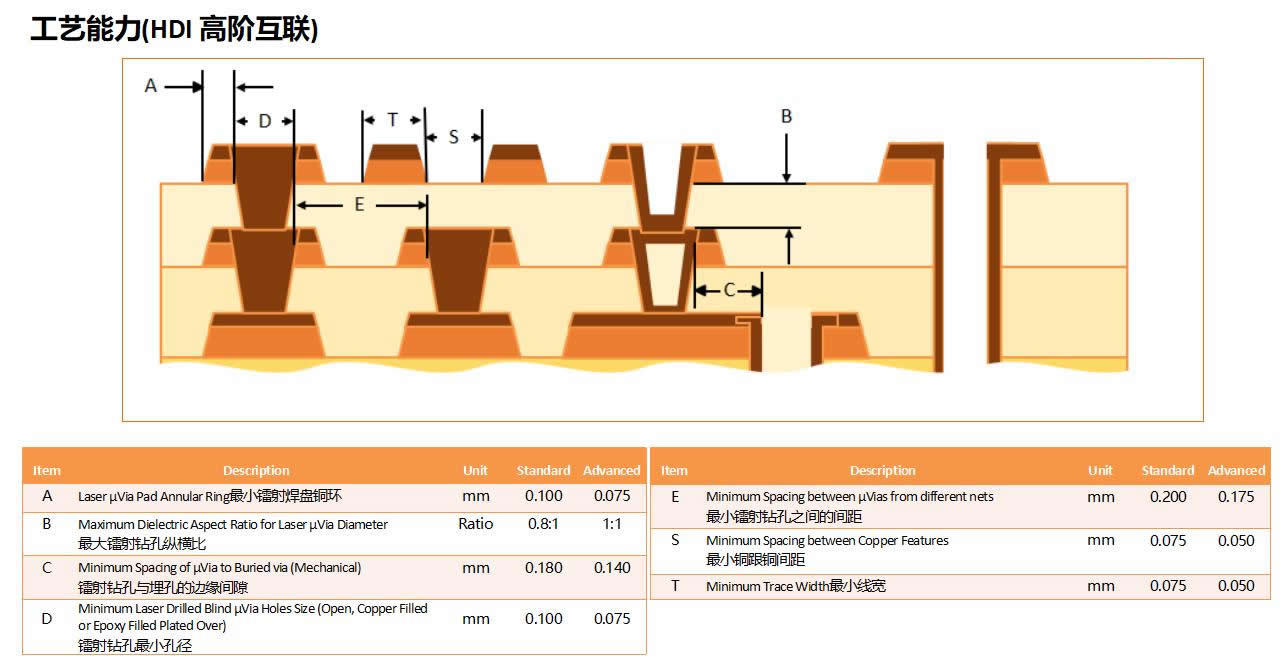

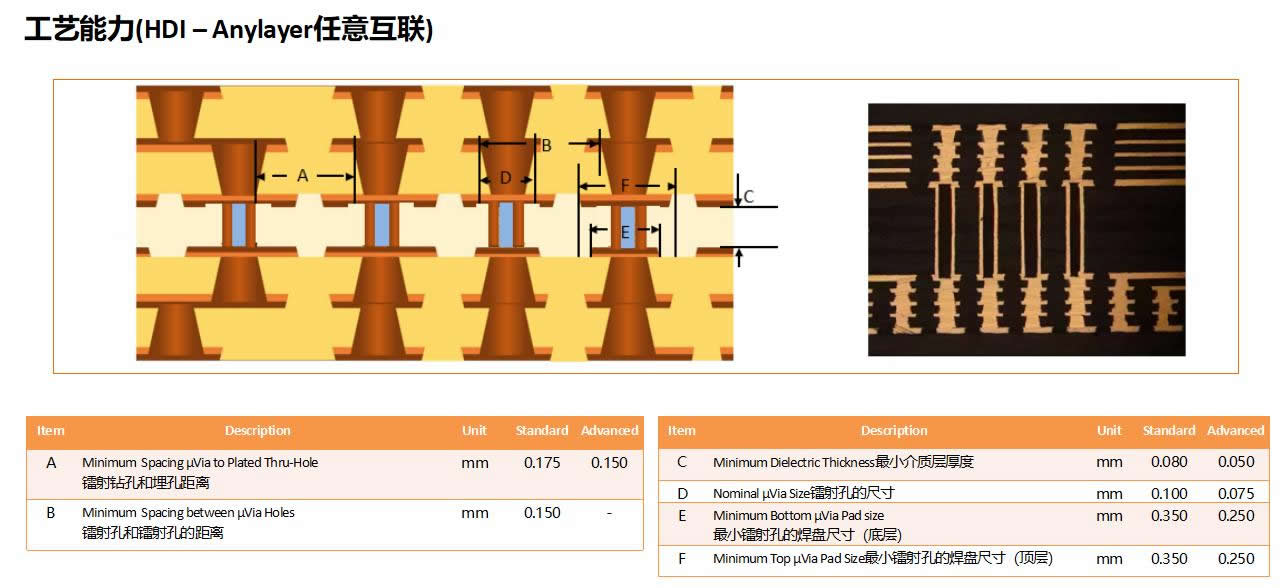

HDI
|
|
|
|
Board Thicknes
|
Min
|
0.4 mm
|
0.35 mm
|
Max
|
2.4 mm
|
4.0 mm
|
Blind Vias Tpyes
|
---
|
2+N+2, BVH
|
3+N+3, BVH
|
Holes size for Resin Plugged holes
|
Min
|
0.15 mm
|
0.07 mm
|
Max
|
0.8 mm
|
1.5 mm
|
Holes size for Copper filling
|
Min
|
0.07 mm
|
0.07 mm
|
Max
|
0.5 mm
|
0.5 mm
|
Laser drill size
|
---
|
0.07 mm
|
0.15 mm
|
